A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation

A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation
A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation
Temel bilgi
Menşe yeri: Çin
Marka adı: FANEYN
Sertifika: CE
Min sipariş miktarı: bir 40HQ
Ambalaj bilgileri: PE torba
Teslim süresi: 10 İş günü
Ödeme koşulları: T/T
En iyi fiyat Şimdi başvurun
Detay Bilgi
Başvuru: Binalar ve endüstriyel ekipmanlar için ısı yalıtımı Boyutlar: Tipik olarak 600 mm x 1200 mm
Kurulum yöntemi: Mekanik sabitleme veya yapıştırma Renk: Sarıdan Kahverengiye
Sıcaklık direnci: -180°C ila 700°C Ses emme katsayısı: 0,85
Ürün adı: Isı Yalıtımı Mineral Yün Kalınlık: 25 mm'den 150 mm'ye
Yoğunluk: 40-200 kg/m³ Çevresel etki: Geri dönüştürülebilir, çevre dostu
Su emme: <%1 Teslimat süresi: Yanmaz, A1 Sınıfı
Isı iletkenliği: 0,035 W/m·K Malzeme: Mineral Yün
Sıkıştırma mukavemeti: ≥10kPa

Ürün Açıklaması

Rock Wool Board (Stone Wool Insulation Board)
Product Overview:

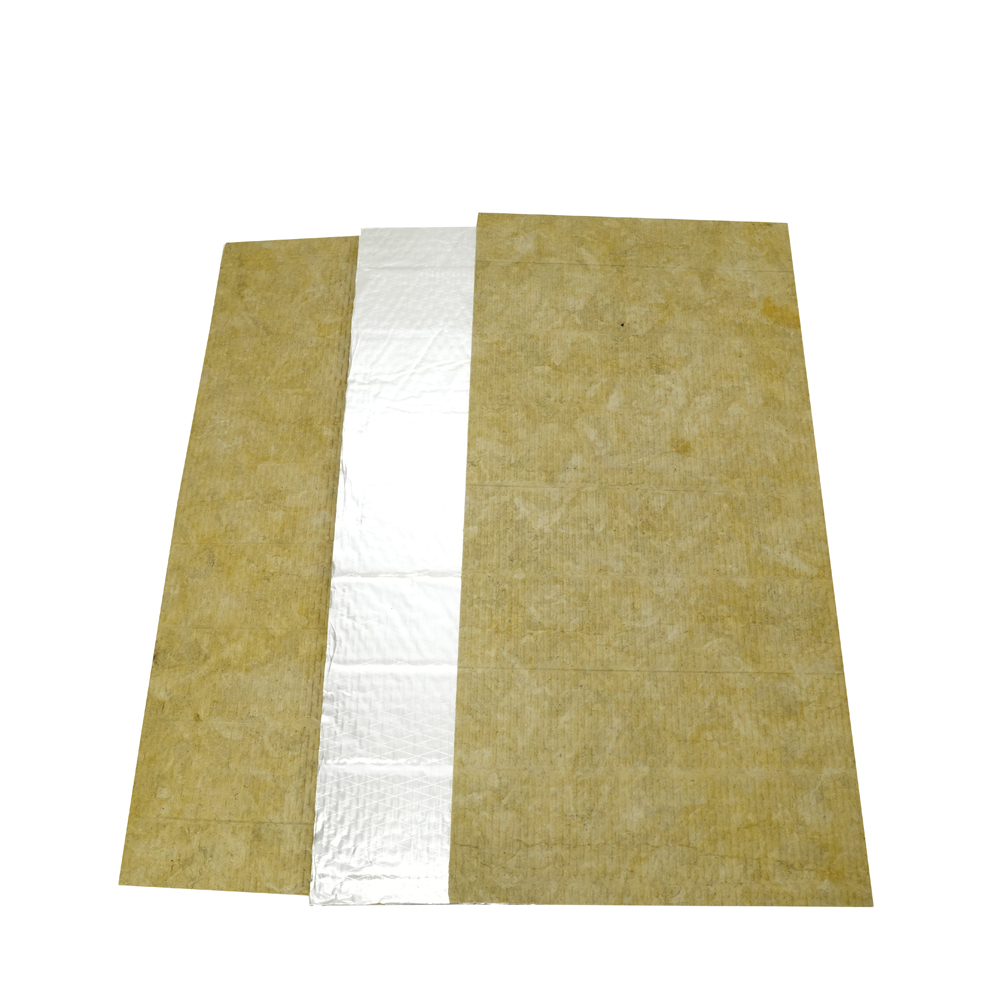

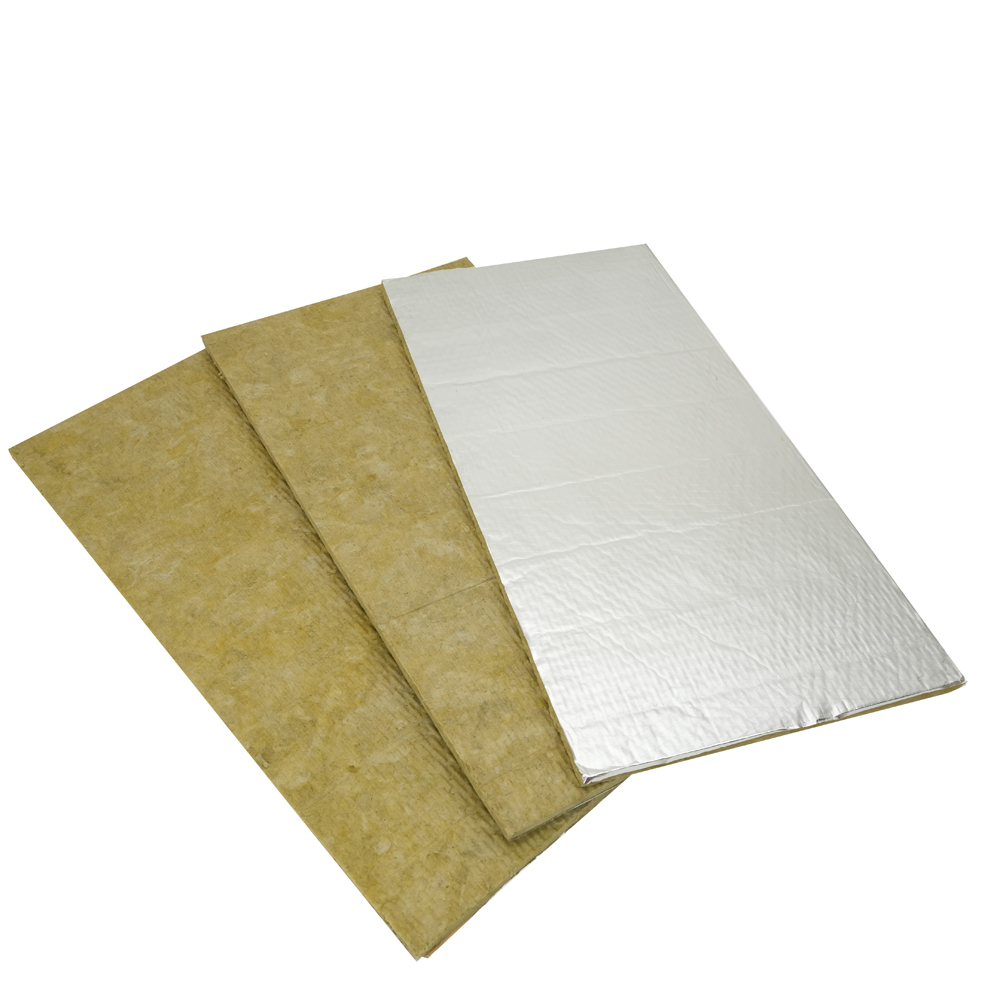

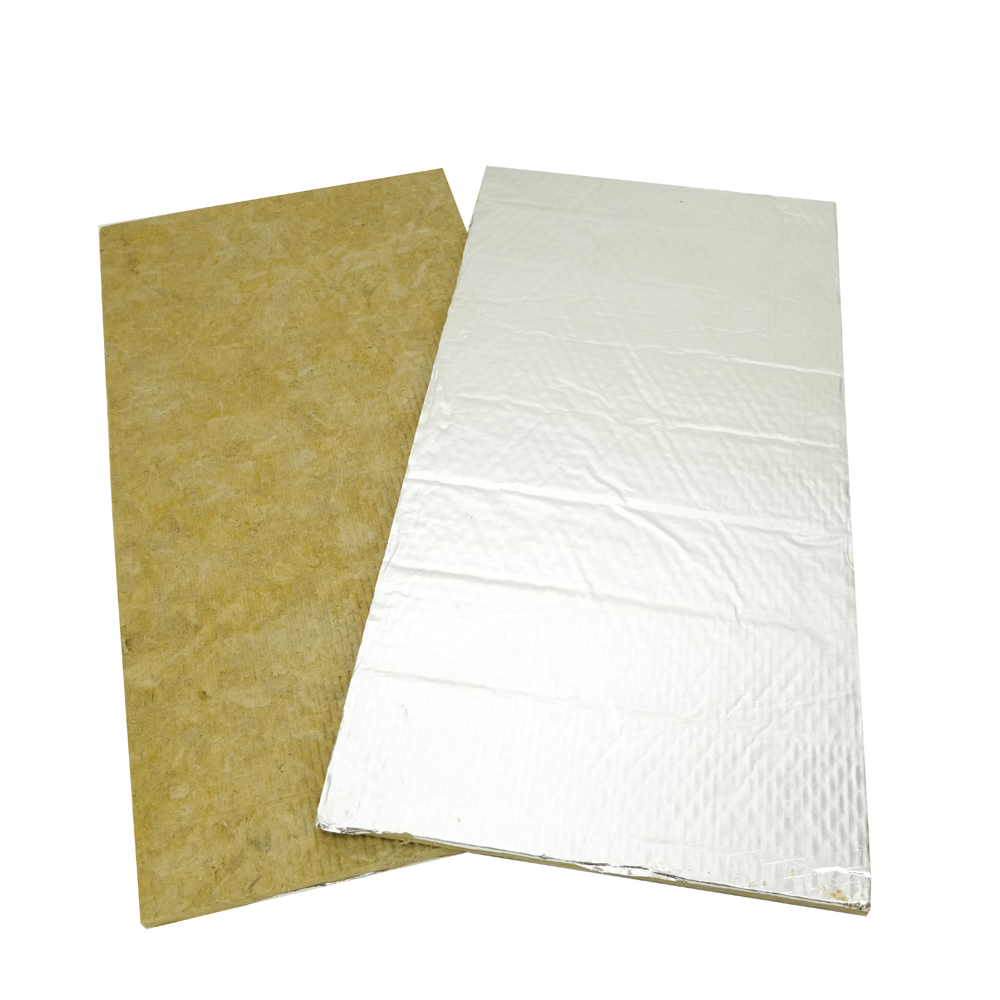

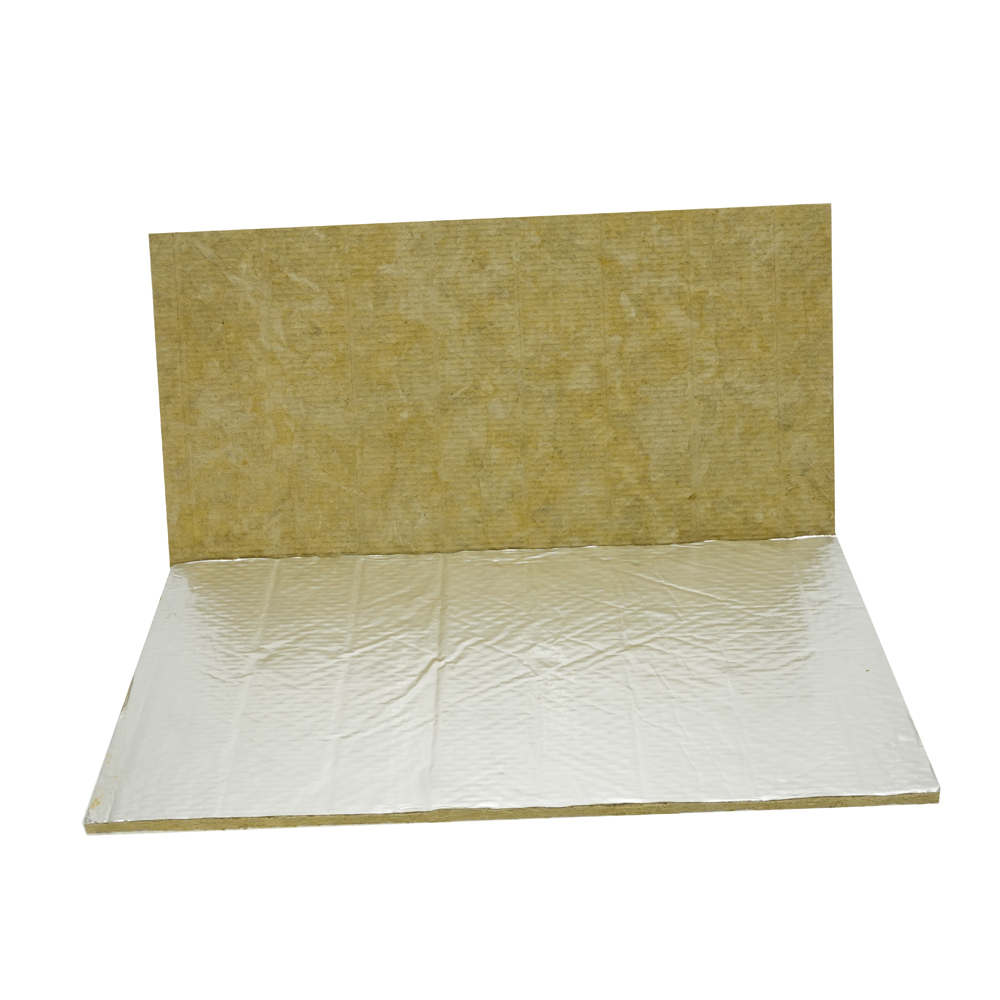

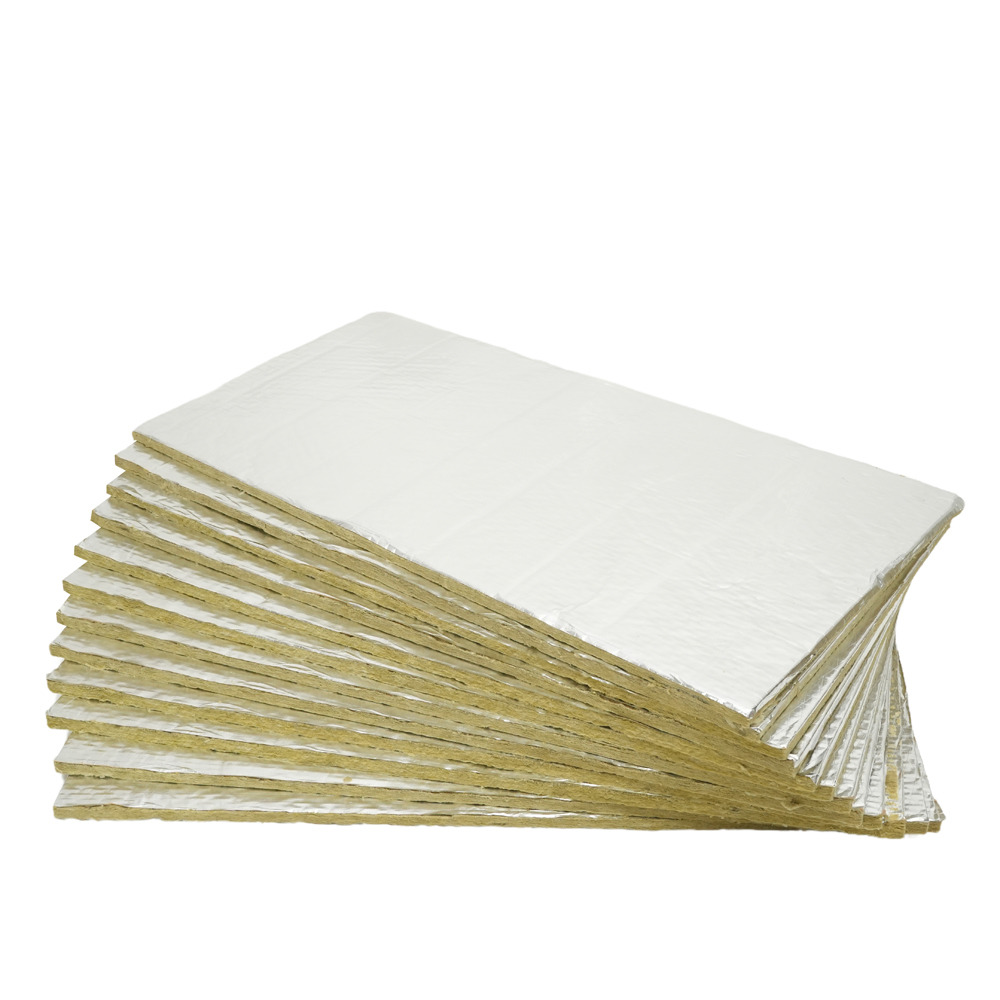

Rock wool board is a rigid insulation panel manufactured from natural basalt rock and recycled slag. The raw materials are melted at temperatures exceeding 1,500°C and spun into fine fibers, which are then bonded with a thermosetting resin and pressed into stable, rigid boards. The result is a dense, porous material that provides outstanding thermal, acoustic, and fire-resistant performance in a wide range of building and industrial applications.

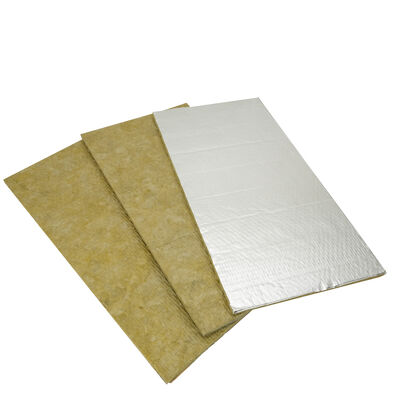

A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation 0
Key Features & Benefits:
Feature Benefit
A1 Non-combustible Highest fire safety rating; melting point above 1,000°C; prevents flame spread
Low Thermal Conductivity ≤0.044 W/(m·K) at 70°C for excellent energy efficiency
High Sound Absorption Dense fiber structure effectively reduces mid-to-low frequency noise
Low Moisture Absorption ≤0.5% water content; resists mold, rot, and corrosion
Dimensionally Stable Maintains shape and performance over time
Easy to Install Can be cut on-site with standard tools; suitable for irregular spaces
Eco-friendly Made from natural stone; asbestos-free and non-toxic
Technical Specifications:
Parameter Specification
Density Range 24 – 96 kg/m³
Density Tolerance ±10%
Thickness Range 25 – 100 mm (customizable)
Length Range 600 – 2,400 mm (customizable)
Width Range 600 – 1,250 mm (customizable)
Thermal Conductivity ≤0.044 W/(m·K) at 70±5°C
Fiber Diameter 7 ± 1 μm
Shot Content (>0.25mm) ≤12%
Moisture Content ≤0.5%
Organic Matter Content ≤4%
Melting Point >1,000°C
Fire Rating A1 Non-combustible
Available Facings:

  1. Foil-Scrim-Kraft Facing

  2. Alum Glass Cloth Facing

  3. Fiberglass Tissue

Unfaced boards are also available.

Packaging:

  • Standard: Plastic bag packaging

  • Custom packaging options available upon request

Applications:

  • Building exterior wall insulation systems

  • Curtain wall fire barriers and cavity walls

  • Roof and ceiling insulation

  • HVAC duct insulation

  • Industrial pipe and equipment insulation

  • Core material for sandwich panels

  • Soundproofing in machine rooms, studios, and theaters

  • Marine and offshore insulation
