Glass Wool Pipe Insulation for HVAC Duct Systems - Thermal and Acoustic Solution

Glass Wool Pipe Insulation for HVAC Duct Systems - Thermal and Acoustic Solution
Glass Wool Pipe Insulation for HVAC Duct Systems - Thermal and Acoustic Solution Glass Wool Pipe Insulation for HVAC Duct Systems - Thermal and Acoustic Solution Glass Wool Pipe Insulation for HVAC Duct Systems - Thermal and Acoustic Solution Glass Wool Pipe Insulation for HVAC Duct Systems - Thermal and Acoustic Solution Glass Wool Pipe Insulation for HVAC Duct Systems - Thermal and Acoustic Solution
Temel bilgi
Menşe yeri: Çin
Marka adı: FANRYN
Ambalaj bilgileri: Plastik torba
Teslim süresi: 15
Ödeme koşulları: T/T, L/C
En iyi fiyat Şimdi başvurun
Detay Bilgi
Dayanıklılık: Uzun ömürlü ve zamanla yerleşmiyor Sıcaklık direnci: 1000 ° C'ye kadar
Yoğunluk: 10-100 kg/m3 Tip: Termal yalıtım
Nem emilimi: % 1'den az Kimyasal direnç: Çoğu kimyasala karşı dirençli
Termal iletkenlik: 0.035-0.045 w/mk Uygulama: Hem konut hem de ticari binalar için uygun
Malzeme: Mineral yün Ses emilimi: 0.9-1.0 NRC
Yalıtım Değeri: İnç başına R-3.5 Boyut: 4ft x 8ft standart boyutu
Kurulum yöntemi: Kesilmesi ve takılması kolaydır Çevre Dostu: Doğal ve geri dönüştürülebilir malzemelerden yapılmıştır
Yangın direnci: Sınıf A1
Vurgulamak:

glass wool pipe insulation HVAC

,

thermal acoustic duct insulation

,

mineral wool pipe insulation

Ürün Açıklaması

Glass Wool Pipe Insulation for HVAC Duct Systems - Thermal and Acoustic Solution
Product Attributes
Attribute Value
Durability Long-lasting and does not settle over time
Temperature Resistance Up to 1000°C
Density 10-100 kg/m3
Type Thermal Insulation
Moisture Absorption Less than 1%
Chemical Resistance Resistant to most chemicals
Thermal Conductivity 0.035-0.045 W/mK
Application Suitable for both residential and commercial buildings
Material Mineral Wool
Sound Absorption 0.9-1.0 NRC
Insulation Value R-3.5 per inch
Size Standard size of 4ft x 8ft
Installation Method Easy to cut and install
Environmental Friendly Made from natural and recyclable materials
Fire Resistance Class A1
Product Introduction

Designed for extreme environments, our glass wool pipe sections provide reliable thermal insulation for industrial heating systems and high-pressure steam pipelines. Withstanding temperatures from -85°C to 454°C, these pre-formed pipes ensure energy efficiency and safety in chemical plants, power stations, and manufacturing facilities. The material's excellent acoustic properties also reduce operational noise, contributing to a safer working environment.

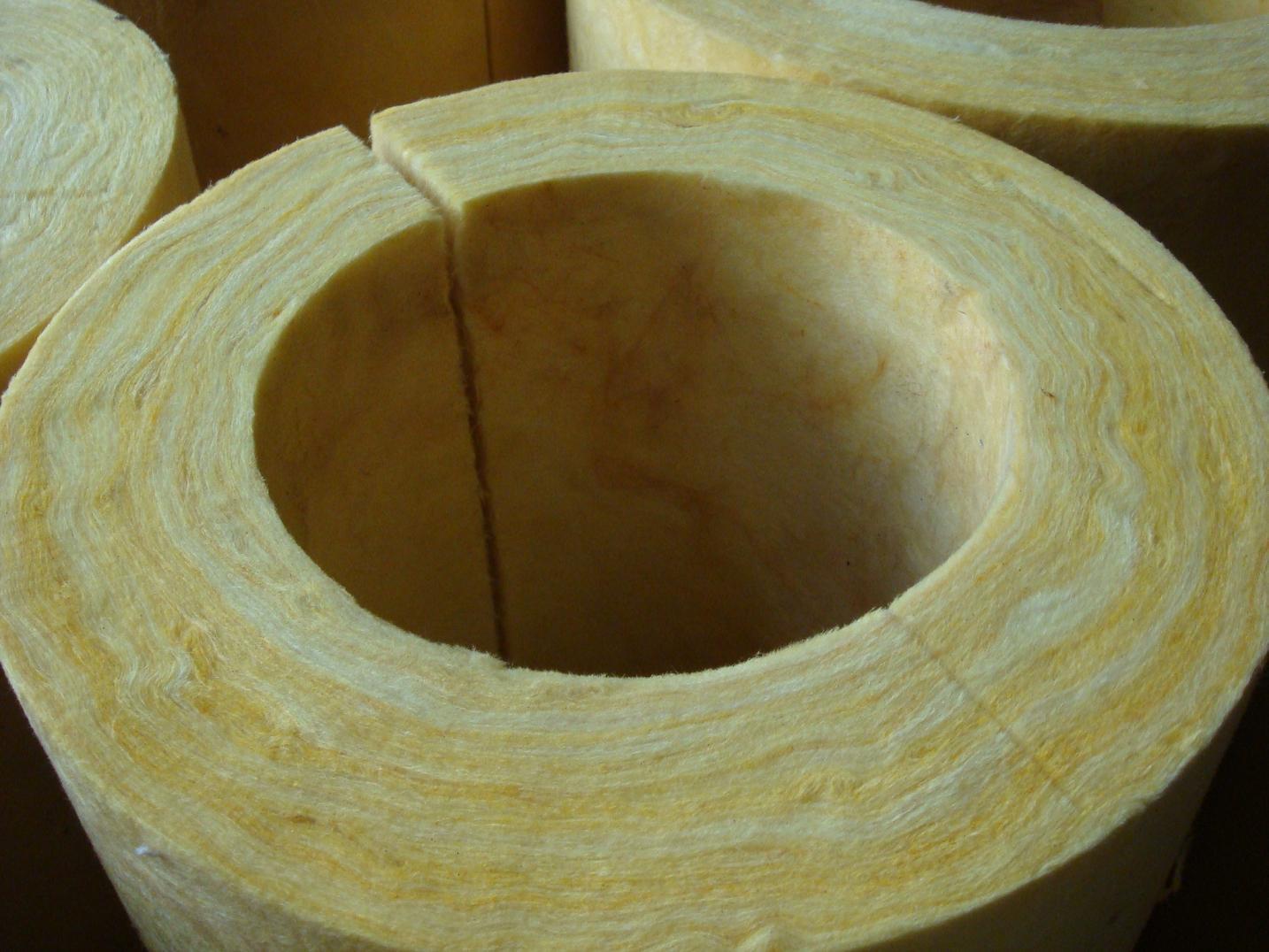

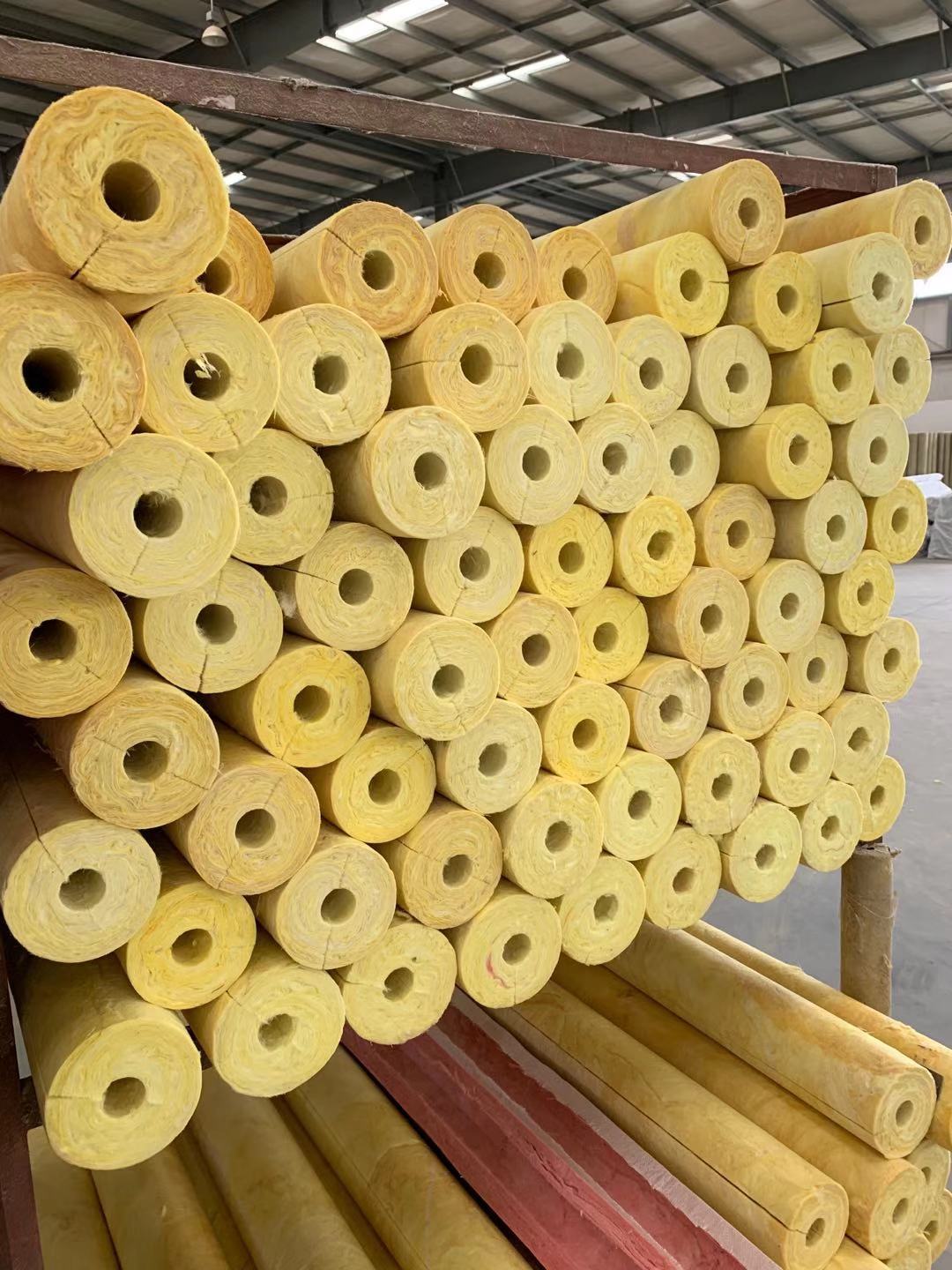

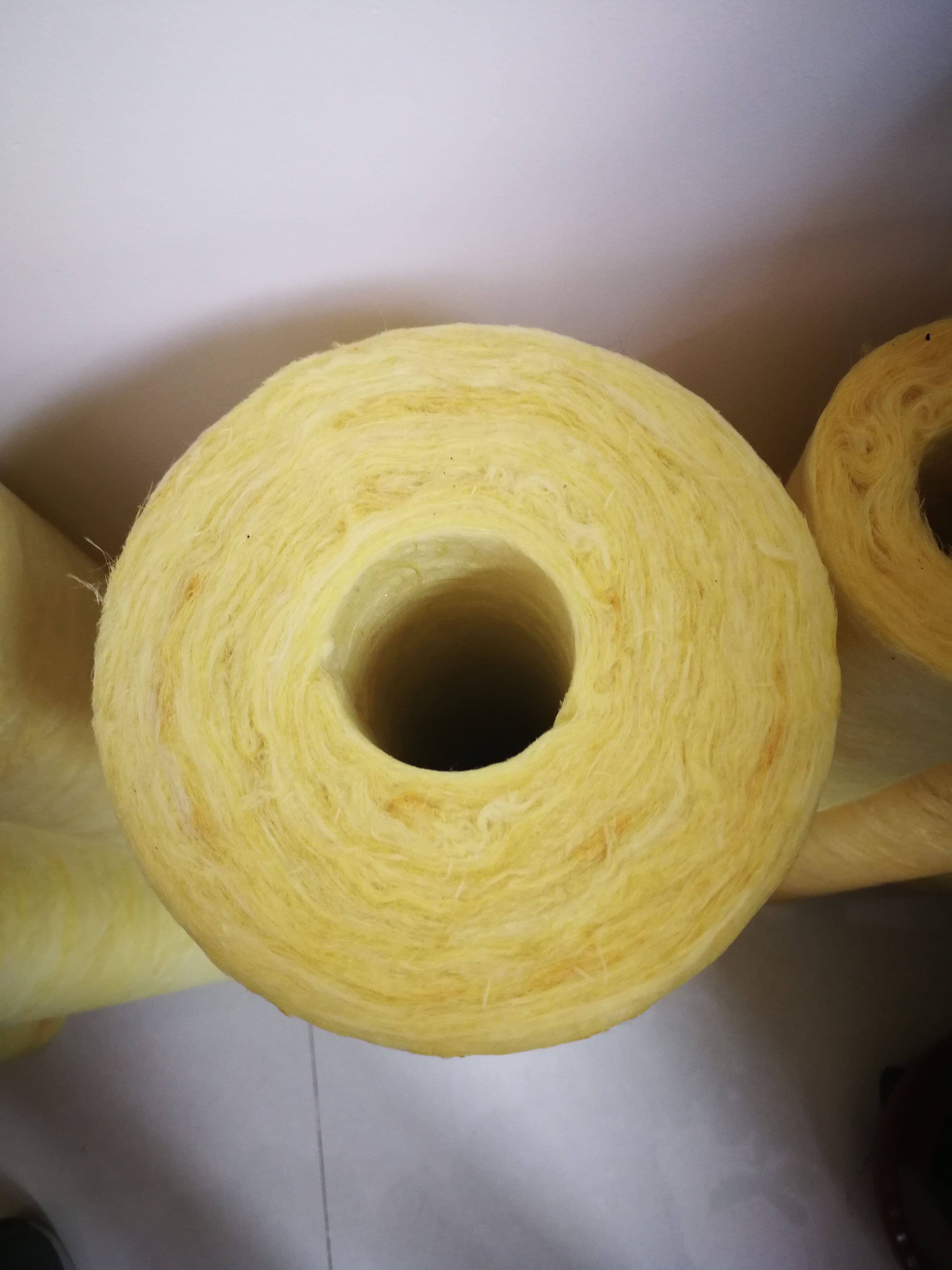

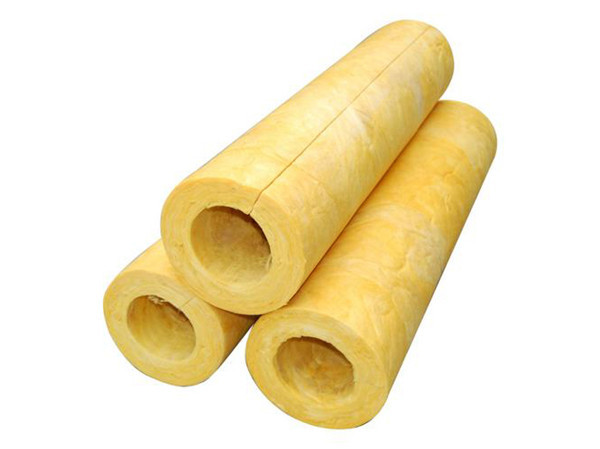

Glass wool pipe insulation product view Glass wool pipe insulation installation example Glass wool pipe insulation close-up
Facing Options for Glass Wool Pipe
  • Foil-Scrim-Kraft Facing
  • Alum Glass Cloth Facing
Glass wool pipe facing options
Product Parameters
Recommend Thickness List(mm) Pipeline System Type The Thickness of glasswood pipe shell applied in different pipeline(mm)
Liquid Temperature Range℃ Diameter of Branches Under 50mm Under 25mm
Air System Steaming and Water System High Temperature/High Pressure System 152-238 40
Medium Temperature/Medium Pressure System 122-151 40
low Temperature/low Pressure System 94-121 25
low Temperature System 49-93 13
Steaming Condensator of Watering System Any Temperature 25
Product Size Specifications
Density(kg/m3) Thickness(mm) Length (mm) Diameter (mm)
48-80 25-90 1000,1200 18-529
Glass wool pipe size specifications
Packing Information

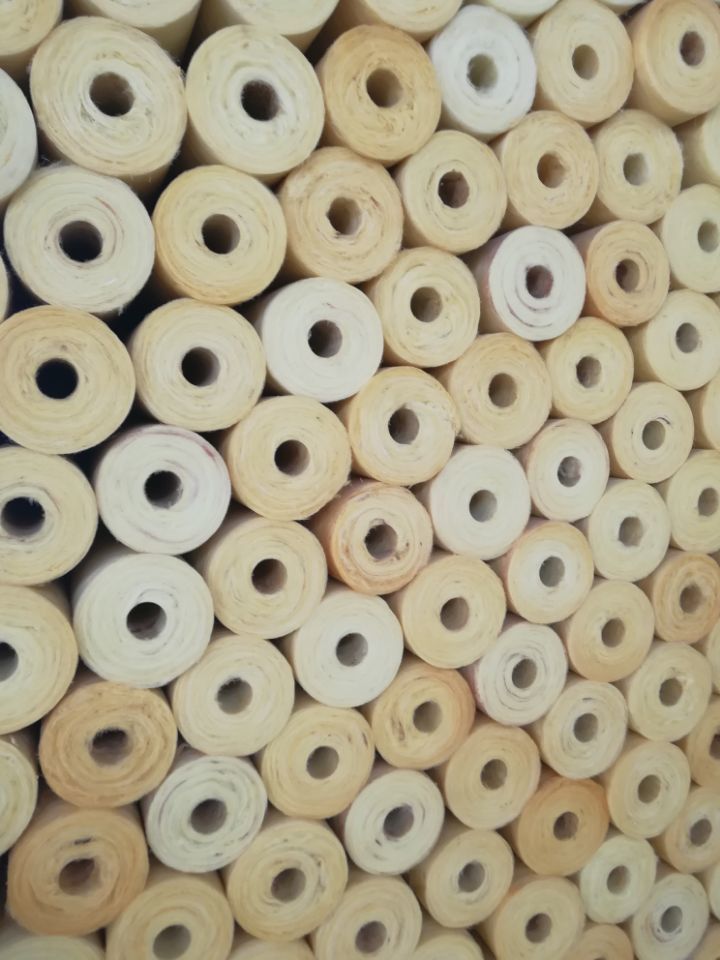

Glass wool pipe packing example 1 Glass wool pipe packing example 2 Glass wool pipe packing example 3 Glass wool pipe packing example 4
Frequently Asked Questions
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).
Q3: What is your lead time for one 40HC container order?
A3: Usual 10-15 work days after placing order.
Q4: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A4: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
