Class B0 Rubber Plastic Insulation Sheet with Fire Resistance, Moisture Resistance, and Superior Thermal Conductivity

Temel bilgi

Menşe yeri:	ÇİN
Marka adı:	fanryn
Sertifika:	BS476Part 7∝Part6
Model numarası:	kauçuk yalıtım tabakası

Min sipariş miktarı:	1*20ft
Fiyat:	0.1-5$
Ambalaj bilgileri:	Plastik torba
Teslim süresi:	7-10 gün
Ödeme koşulları:	T/T
Yetenek temini:	10000 metrekare

En iyi fiyat Şimdi başvurun

Detay Bilgi

Kimyasal Direnç:	Çoğu kimyasala karşı dirençli	Yalıtım türü:	Termal
Yangına Dayanıklılık:	Sınıf 0, Sınıf B1	Yoğunluk:	40-90 kg/m3
Ses emilimi:	Yüksek	Kurulum Yöntemi:	Gevşek dolgu, batt veya rulo
Başvuru:	Çatılar, duvarlar, zeminler, borular, kanallar	Çevresel Etki:	Çevre dostu
Dayanıklılık:	Uzun ömürlü	Sıcaklık Aralığı:	-50 ° C ila 110 ° C
Nem Direnci:	Su itici
Vurgulamak:	rubber sponge foam sheet roll , shock absorption rubber foam , waterproof rubber foam sheet

Ürün Açıklaması

CLASS B0 Rubber Plastic Insulation Sheet

FANRYN CLASS B0 Rubber Plastic Insulation Sheet is a premium thermal insulation material offering exceptional performance. It matches the thermal conductivity of CLASS B1 products while delivering superior heat insulation, enhanced energy efficiency, excellent moisture resistance, and extended service life. The standard finish is charcoal grey.

Furthermore, FANRYN CLASS B0 insulation sheet features outstanding fire resistance due to specialized additives in its composition. Compliant with European standards, it has been widely exported to Southeast Asia, the Middle East, Australia, and other international markets.

Product Specifications

Thickness	10mm	15mm	20mm	25mm	30mm
Length per piece	20m	20m	10m	10m	10m
Tolerance	+1.5	+1.5	+3.5	+4	+5

Technical Data

Item	Unit	Specification	Standard
Density	Kg/m³	40~90	GB/T 6343
Temperature	℃	-50~110	GB/T 17794
Oxygen index	%	≥40	GB/T 2406
SDR		≤65	GB 8627-1999
Water vapor permeability	Factor	≥1.0×10⁴	GB/T 17146-1997
Water vapor permeability coefficient	g/(m.s.pa)	≤1.96×10⁻¹¹
Water absorption ratio in vacuum	%	≤10	GB/T 17794-2008
Dimension stability 105±3℃,7d	%	≤10	GB/T 8811
Crack resistance	N/cm	≥2.5	GB/T 10808
Compression resilience ratio	%	≥70	GB/T 6669

Product Applications

Architecture and Air Conditioning: Workshop Insulation and Air Conditioning Unit Efficiency
Industrial maintenance: Insulated cold/hot containers and pipes
Noise control: Effective sound absorption system
Niche markets: Key environments in diving suits, sports fillers, food, electronics, pharmaceutical and automotive industries

Product Advantages

Outstanding thermal efficiency: The extremely low thermal conductivity significantly saves energy
Comprehensive safety and durability: Excellent fire resistance, vibration damping and moisture resistance from closed-cell structure
Superior application: High flexibility and clean appearance facilitate quick and professional installation

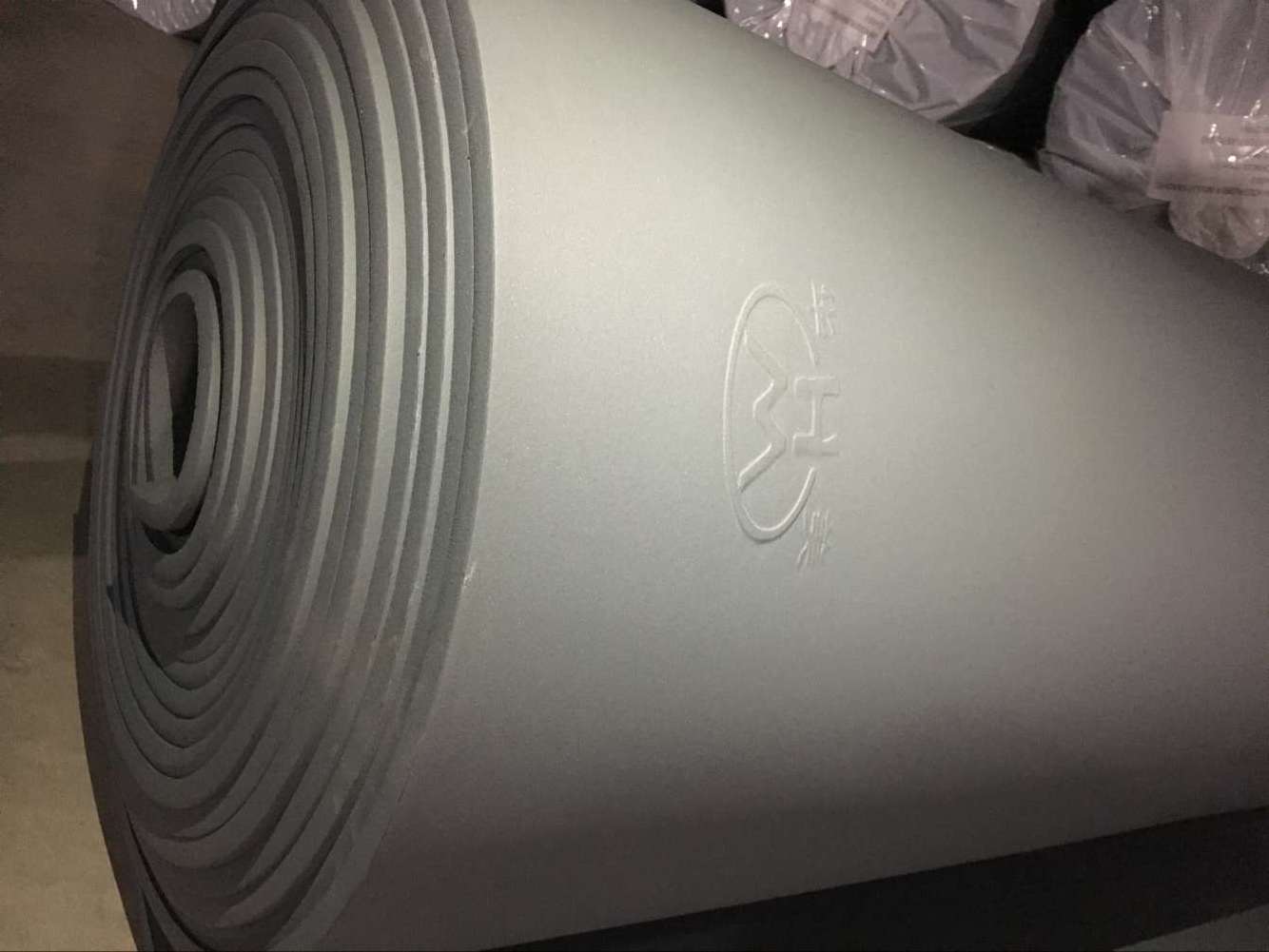

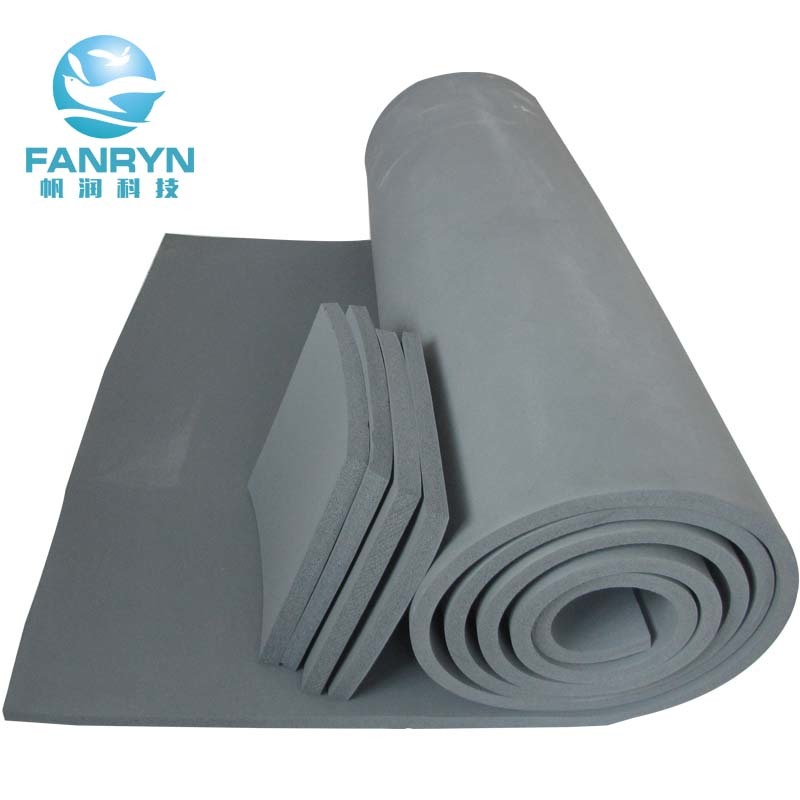

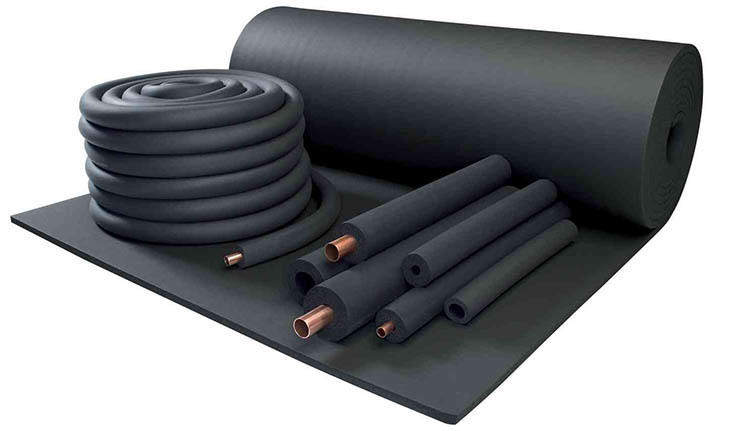

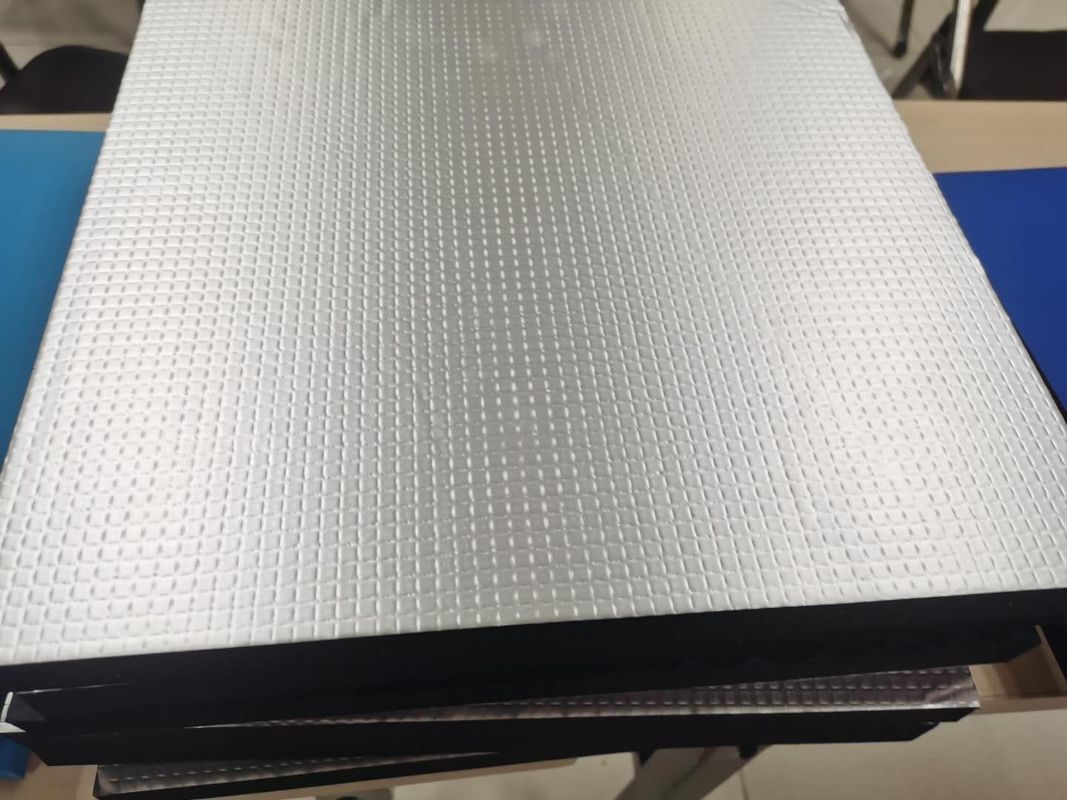

Product Images
