| Yoğunluk: | 40-200kg/m3 | Tip: | Diğer Isı Yalıtım Malzemeleri, Battaniye, Taş Yünü, Mineral taşyünü ses fiber keçe yalıtım taş yünü |
|---|---|---|---|
| Renk: | SARI | Kalınlık: | 30-100mm |
| Uygulama: | İnşaat,25-200mm,Buhar borusu yalıtımı,Metal Bina Yalıtımı,Isı yalıtımı malzemesi | Malzeme: | Fiberglas, Bazalt, Taş yünü, gabro, Cam Elyaf |
| Yanıp sönme derecesi: | Yanlış Olmayan Derece A1, Bağlantısız Derece A | Özellik: | Yatılamaz, su geçirmez, ısı yalıtım, nemli kanıt, yalıtım/fireproofing/ses emici |
| Isı İletkenliği: | 0,032W/mk,0,038 W/mK,0,032-0,06W/mk | Lif çapı: | 4-6μm,3μm-5μm,4-7μm |
| Paket: | PP ve PE torbalar, 1.PP ve PE torbalar 2. müşteriler tarafından özel, dokuma torba ile dış ambalaj, | İşlev: | Su geçirmez, termal koruma |
| Boyut: | 1200*600mm | Isı İletkenliği: | 0,038-0,042 w/mk,0,037-0,042w/mk |
| Hidrofobiklik: | ≥% 98 | ||
| Vurgulamak: | custom rock wool insulation,precision-engineered mineral wool,thermal insulation with warranty |
||
Your project is unique. Your insulation should be too. FANRYN specializes in manufacturing rock wool boards that meet exact project requirements, from standard builds to highly specialized applications.
| Properties | Board | Standards |
|---|---|---|
| Density Tolerance | ±10% | GB/T 19686-2005 |
| Fire Performance | Non-Combustible | GB/T 5464-1999 |
| Reaction to fire Class A1 | GB/T 8624-2006 | |
| Thermal Conductivity (W/mK, at70±5℃) | ≤0.044 | GB/T 10295 |
| Fiber Diameter | 7(+/-1)um | GB/T 5480. 4 |
| Shot Content (shot size>0.25mm) | ≤12% | |
| Moisture Content | ≤0.5% | |
| Organic Matter Content | ≤4% | |
| Melting Point | >1000℃ |
| Product | Board |
| Density (kg/m3) | 40-200 |
| Size :L x W (mm) | 600X1200 |
| Thickness (mm) | 30-100 |
Rigorous Quality Control: Every batch is monitored throughout production—from raw material selection to fiberizing, curing, and cutting. We ensure density tolerance within ±10% and low shot content (≤12%) for consistent performance.
Customization at Your Fingertips:
Density: We produce boards from 40 kg/m³ to 200 kg/m³ to suit your structural and performance needs.
Dimensions & Thickness: While 1200x600mm is standard, we can customize length, width, and thickness (30-100mm standard, other thicknesses on request) to minimize waste and speed up installation.
Specialty Facings Available: Enhance functionality with integrated facings.
Black Scrim Reinforcement: For added tensile strength.

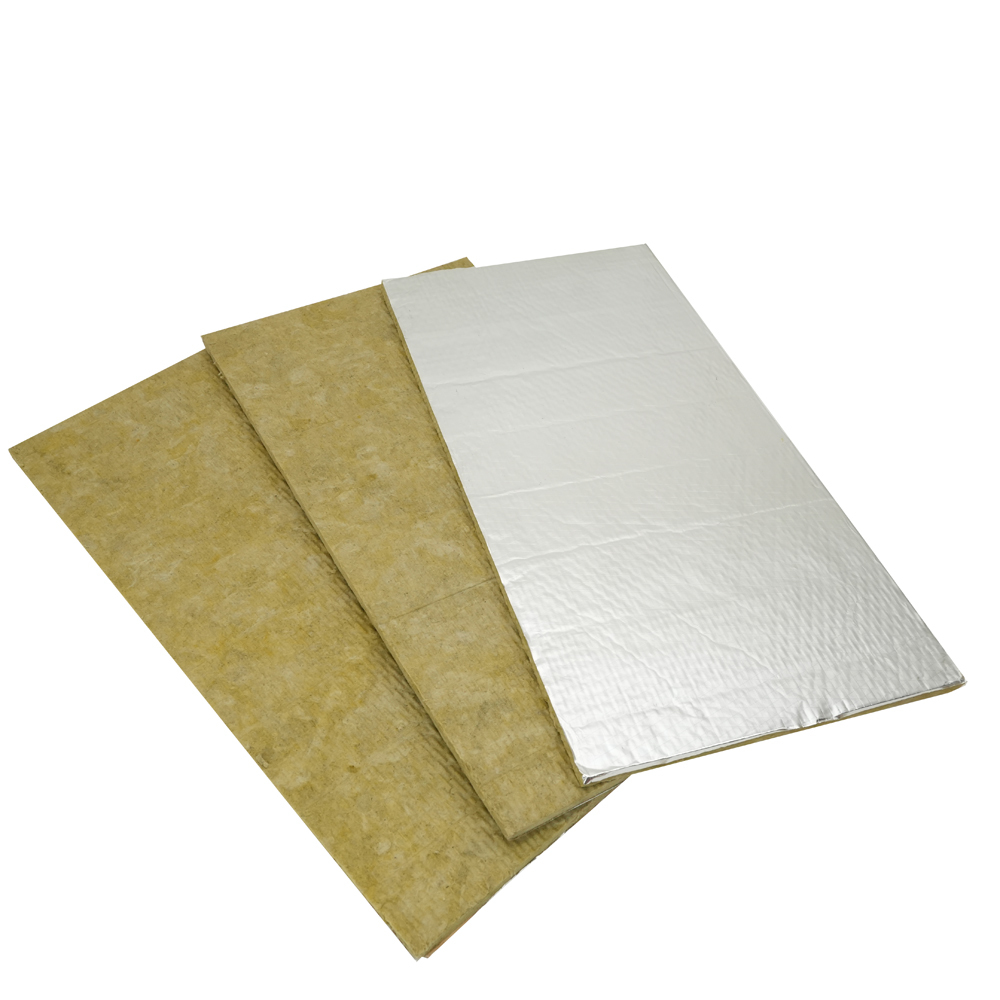

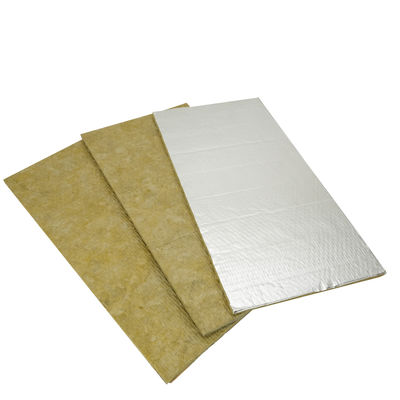

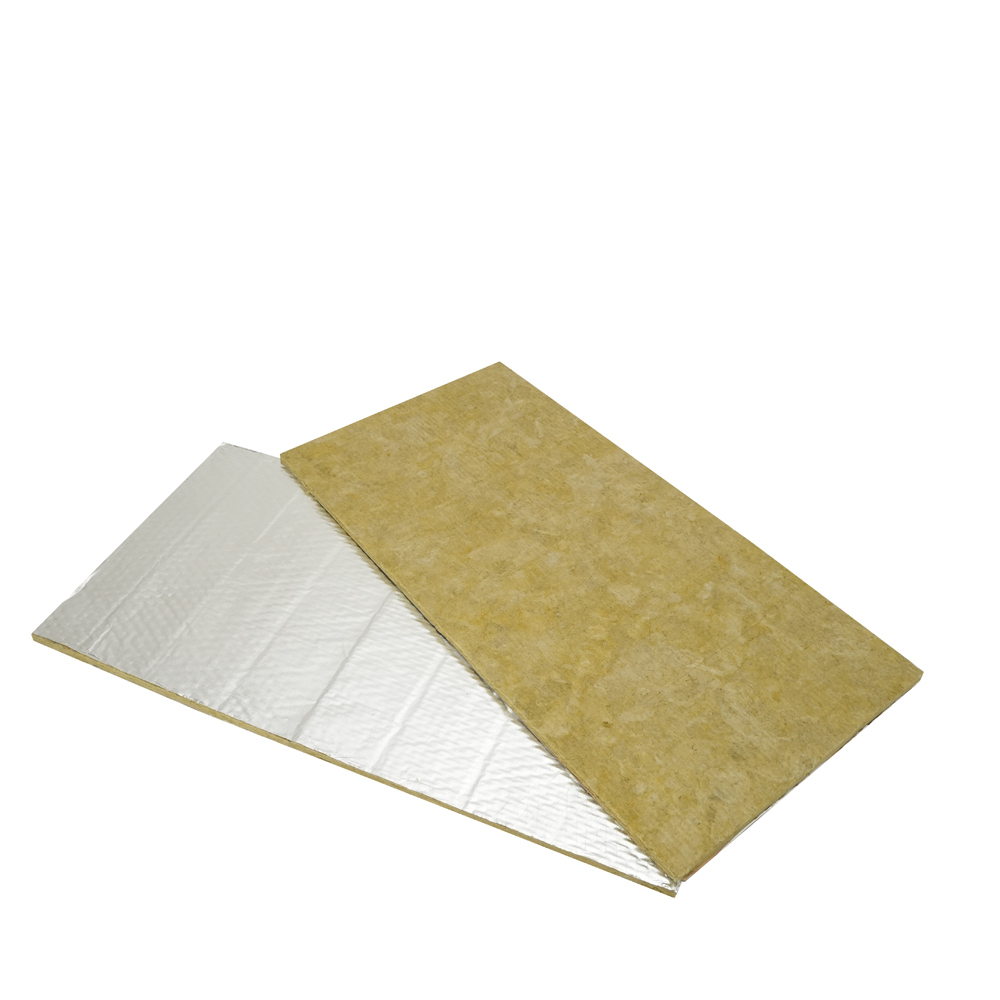

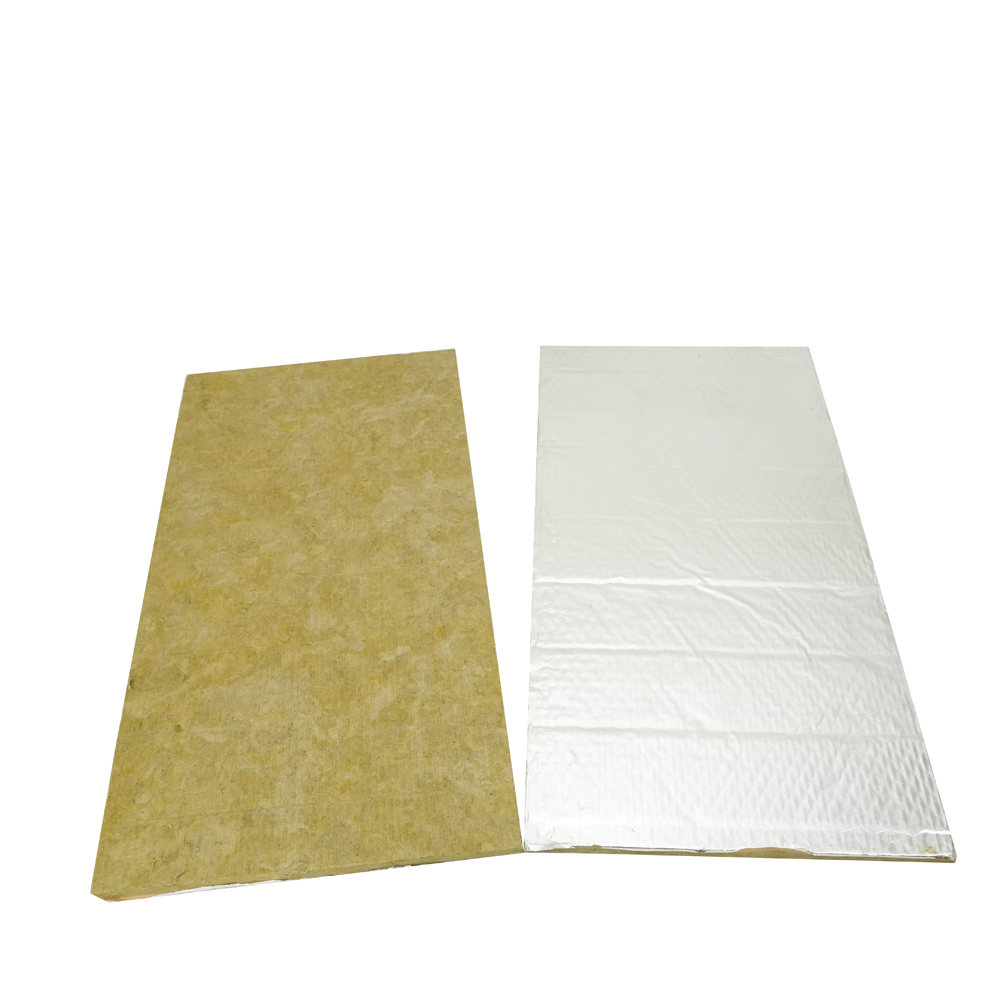

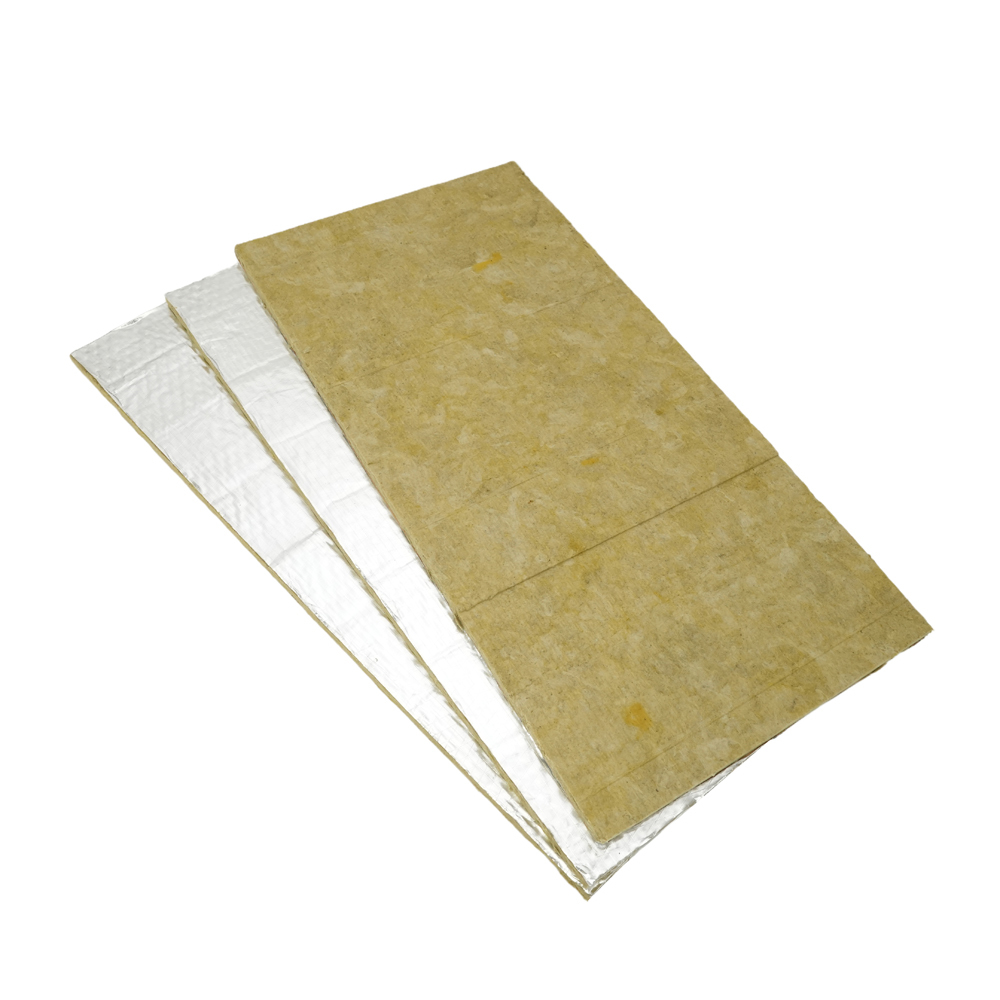

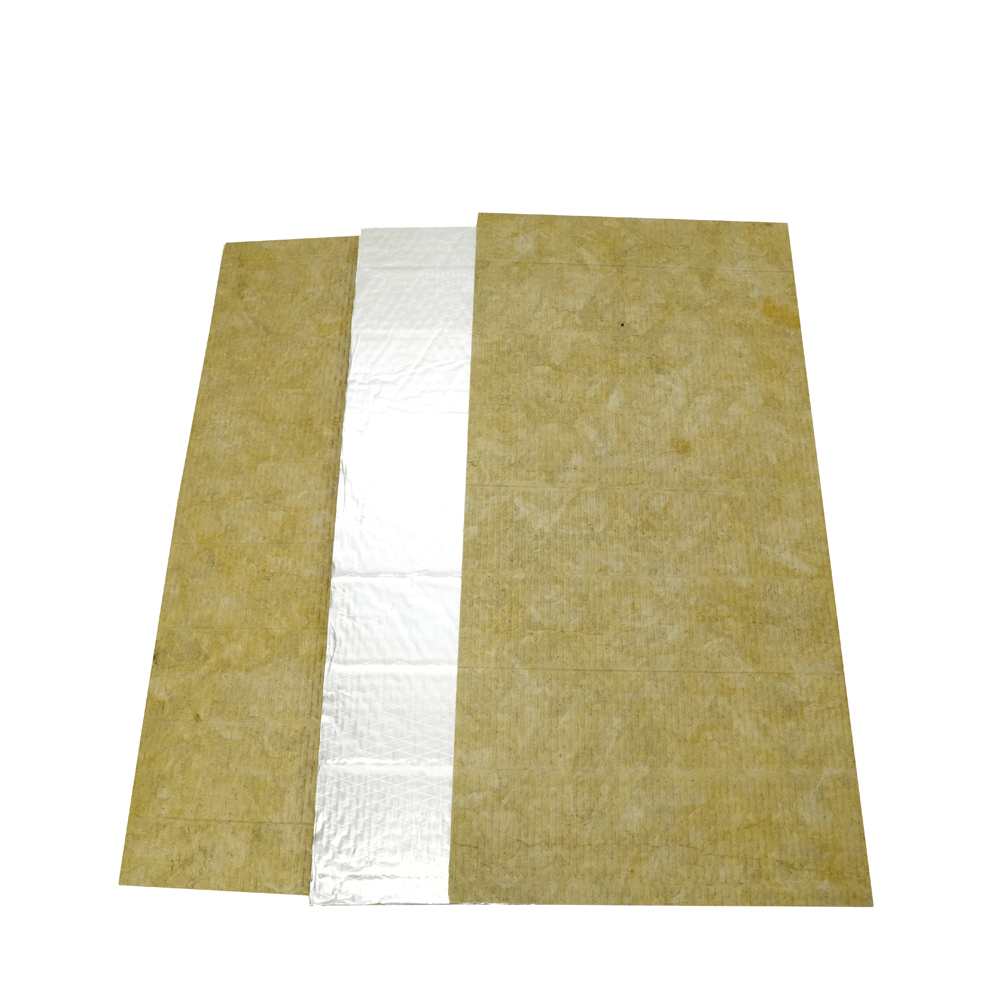

Aluminum Foil: Acts as a vapor barrier and reflective insulation.
Fiberglass Cloth: For high-temperature applications and durability.
![]()
Wire Mesh
Aluminum foil facing
Fiberglas cloth
![]()
