FSK FACING – Kraft-Based Vapor Barrier for Wall and Floor Insulation

FSK FACING – Kraft-Based Vapor Barrier for Wall and Floor Insulation
FSK FACING – Kraft-Based Vapor Barrier for Wall and Floor Insulation FSK FACING – Kraft-Based Vapor Barrier for Wall and Floor Insulation FSK FACING – Kraft-Based Vapor Barrier for Wall and Floor Insulation FSK FACING – Kraft-Based Vapor Barrier for Wall and Floor Insulation FSK FACING – Kraft-Based Vapor Barrier for Wall and Floor Insulation
Temel bilgi
Menşe yeri: Çin
Marka adı: FANRYN
Ambalaj bilgileri: Plastik torba
Teslim süresi: 15 iş günü
Ödeme koşulları: T/T
En iyi fiyat Şimdi başvurun
Detay Bilgi
Su emilimi: ≤0,2 Nem direnci: İyi
Ses emilimi: 0.9-1.0 NRC Termal iletkenlik: 0.035 w/mk
Boyutsal stabilite: ≤% Sıkıştırma mukavemeti: ≥40 kPa
Gerilme mukavemeti: ≥7 kPa Bükülme mukavemeti: ≥14 kPa
Kimyasal direnç: İyi Malzeme: Mineral yün
Yoğunluk: 40-200 kg/m3 Yangın direnci: Sınıf A1
Servis Sıcaklığı: -50 ℃ ila 650 ℃ Termal stabilite: ≥1000°C
Vurgulamak:

Kraft-based vapor barrier FSK

,

FSK facing wall insulation

,

Floor insulation vapor barrier

Ürün Açıklaması

Product Introduction Of the FSK FACING

This FSK Facing variant is designed for use in walls and floors as a vapor barrier and insulation facing. Made with reinforced kraft paper and fiberglass scrim, it provides superior tensile strength and burst resistance. It is commonly used in combination with mineral wool or fiberglass batts to enhance insulation performance and prevent moisture buildup.

Product Details Of The FSK FACING

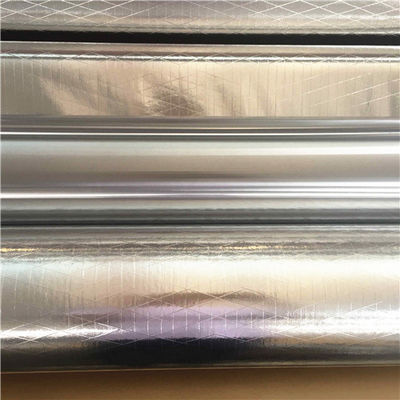

FSK FACING – Kraft-Based Vapor Barrier for Wall and Floor Insulation 0
Product Parameter Of The FSK FACING
Product Construction
FS - 750 Foil: 7 micron / Polyethylene / 50 gsm Kraft paper
FS - 760 Foil: 7 micron / Polyethylene / 60 gsm Kraft paper
FSK-7160A Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 60 gsm Kraft paper
FSK- R7160A Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Fire retardant adhesive / 60 gsm Kraft paper
FSK-7160B Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 60 gsm Kraft paper
FSK-R7160B Foil: 7 micron / 2-ways scrim ( 12.5x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper
FSK - 7180A Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 80 gsm Kraft paper
FSK - 7180B Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 80 gsm Kraft paper
FSK -73B Foil: 7 micron / 2-ways scrim ( 6.25x 12.5mm) / Polyethylene / 60 gsm Kraft paper
FSK -R73B Foil: 7 micron / 2-ways scrim ( 6.25 x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper
TYPICAL PHYSICAL PROPERTIES
Product Basic weight (g/m²) Tensile MD (n/25mm) Tensile XD (n/25mm) Bursting Strength(n) WVTR (ng/N.s) Reflectivity of Foil Surface Temperature Resistance (℃) Fire Rating
FS - 750 80 95 50 20 5.75 95% -29~ +66 -----
FS - 760 85 105 50 20 5.75 95% -29~ +66 -----
FSK - 7160A 96 125 50 30 5.75 95% -29~ +66 -----
FSK - R7160A 98 130 50 30 5.75 95% -29~ +66 Class 1
FSK - 7160B 98 132 65 30 5.75 95% -29~ +66 -----
FSK - R7160B 100 136 65 30 5.75 95% -29~ +66 Class 1
FSK - 7180A 115 150 75 40 5.75 95% -29~ +66 -----
FSK - 7180B 95 150 80 40 5.75 95% -29~ +66 -----
Product Feature And Application Of The FSK FACING
  • Kraft paper standard weight is 50 gsm and 60 gsm
  • Typical width: 1.0m,1.1m,1.2m,1.25m,1.3m
  • Length: 100m,300m,1000m,2500m
  • Inner core: 76mm
  • Mainly used as vapor barriers with various insulation materials, also applied for duct wrap in HVAC system, and suitable for in-line lamination of glass wool, rock wool, mineral wool.
Packing & Shipping

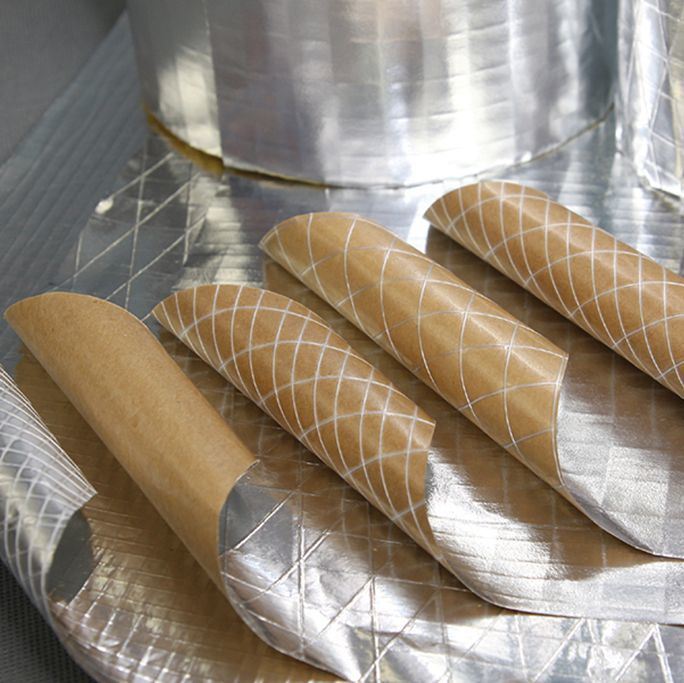

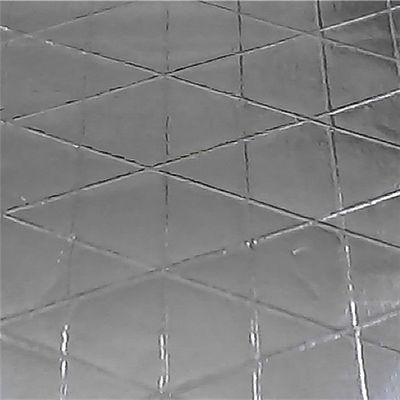

FSK FACING – Kraft-Based Vapor Barrier for Wall and Floor Insulation 1 FSK FACING – Kraft-Based Vapor Barrier for Wall and Floor Insulation 2 FSK FACING – Kraft-Based Vapor Barrier for Wall and Floor Insulation 3
FAQ
Q: What are the benefits of your FSK facing?
A: Our FSK facing is light,soft,dust free,fire resistant,easy to install. Also the material is eco-friendly, non-toxic and have better heat insulation.
Q: Can I get some samples for testing before placing order?
A: Yes, we can provide you some free samples for your reference if you would like to bear the express cost.
Q: Can you make other sizes and packages for this product?
A: Yes, we can make other sizes as your requirement ,normally our quotation will contain the common package. If you need your own packages, you’d better advise your requirement ahead of time for an accurate quote.
